4zone  Fire Alarm Control Panel cp1004 火灾报警控制器面板
产品详情
产品评论(0)
传统4回路多线制火灾报警控制器,配接任何2线烟感(YT102,YT102C等)温感
概述:
传统4回路火灾报警控制面板

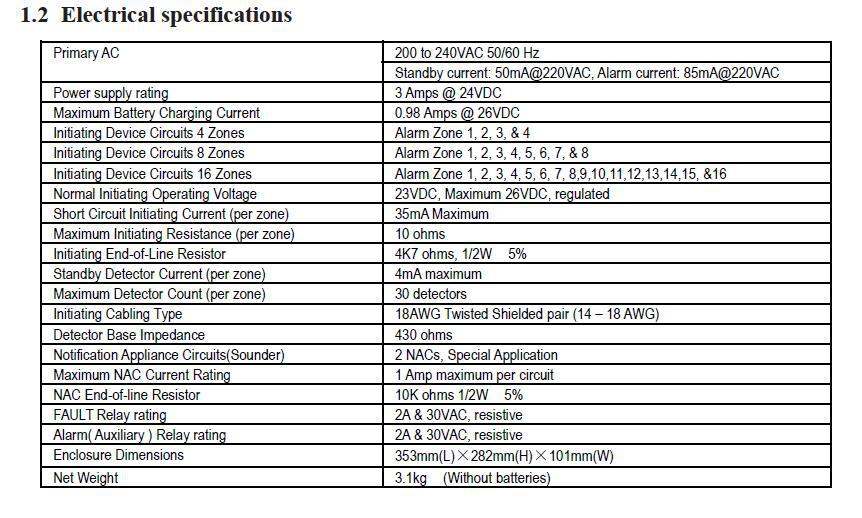

主要规格/功能参数
4回路报警显示,2路声光输出,
每个回路可接 两线烟雾探测器和 任何常开触点的设备
供电电压 AC110-270V  输出电压24V。
需要备电 :两节 7AH/12V
故障显示 测试按钮 消音按钮 复位按钮

1. Introduction
The fire alarm control panels (4 Zones, 8 Zones, and 16 Zones) provide all of the
sophisticated features required of a leading edge conventional fire alarm system along
with the simple operation and efficient installation methods demanded by both
installers and building users.
The panel can be flush or surface mounted and the generously sized metal back box
allows ample space for rear or top cable entries.
A comprehensive range of auxiliary devices is available to operate with the fire
control panels including optical, ionization, photoelectric, and heat detectors.
Each of the system components has been specifically designed to operate as part of
the system. This provides assurance that the control panel, smoke detectors,
interface devices and the ancillary components are all fully compatible with one
another and that the full range of system functionality is supported by each device.
1.1 Product features
The panels have the following key features:
4, 8, or 16 conventional input zones.
2 notification appliance circuits (NAC, Sounder) with built-in
synchronization for ANSI 3.41and Gentex.
The panel comes with a 3 amp power supply.
Dedicated alarm and fault relays.
1 RS485 can be able to connect repeaters.
Enclosure supports two 12V, 7Ah backup batteries.
